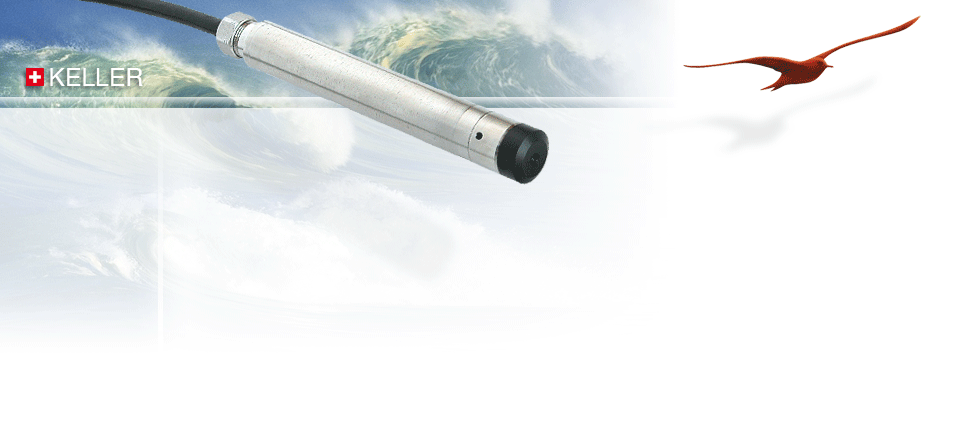

Programmable Level Pressure Transmitter Series 36 X S (Stretto-Line)
ø 16 mm / Digitally compensated / Rangeable
This pressure transmitter is designed for level measurement in narrow downhole applications where highest accuracy is required.
Product Benefits: Only 16 mm diameter, mathematically compensated, programmable, assisting inventory reduction, filtering function 2 ms...30 sec, improved surge protection
Pressure measurements can be displayed and recorded on PC or Laptop with help of the software ControlCenterSeries30 (CCS30) and a seriel interface cable. Export of recordings to usual file formats possible. Up to 128 devices can be connected together into a KELLER Bus-system.
Pressure Ranges
Water column approx. | 0…1 to 0…30 bar rel.
0,8…2,3 to 0,8…31 bar abs.
0…10 to 0…300 mH2O
|
| Output | 4...20 mA
RS485 |
| Error Band | 0,2 %FS (within comp. temperature range) |
| Comp. Temperature Range | 0…50 °C |
